Tapping Saddle

Tapping Saddle

Product List

Quantity Image Code Name Price
Tapping Saddle 20 x ½ PS020015 Tapping Saddle 20 x ½
Size: 20mm x ½" (pipe x thread)
$5.47
In stock
Tapping Saddle 25 x ½ PS025015 Tapping Saddle 25 x ½
Size: 25mm x ½"� (pipe x thread)
$5.47
In stock
Tapping Saddle 25 x ¾ PS025020 Tapping Saddle 25 x ¾
Size: 25mm x ¾"� (pipe x thread)
$5.47
In stock
Tapping Saddle 32 x ½ PS032015 Tapping Saddle 32 x ½
Size: 32mm x ½"� (pipe x thread)
$6.10
In stock
Tapping Saddle 32 x ¾ PS032020 Tapping Saddle 32 x ¾
Size: 32mm x ¾"� (pipe x thread)
$6.10
In stock
Tapping Saddle 40 x ½ PS040015 Tapping Saddle 40 x ½
Size: 40mm x ½"� (pipe x thread)
$6.88
In stock
Tapping Saddle 40 x ¾ PS040020 Tapping Saddle 40 x ¾
Size: 40mm x ¾"� (pipe x thread)
$6.88
In stock
Tapping Saddle 40 x 1 PS040025 Tapping Saddle 40 x 1
Size: 40mm x 1"� (pipe x thread)
$6.88
In stock
Tapping Saddle 50 x ½ PS050015 Tapping Saddle 50 x ½
Size: 50mm x ½"� (pipe x thread)
$9.78
In stock
Tapping Saddle 50 x ¾ PS050020 Tapping Saddle 50 x ¾
Size: 50mm x ¾"� (pipe x thread)
$9.78
In stock
Tapping Saddle 50 x 1 PS050025 Tapping Saddle 50 x 1
Size: 50mm x 1"� (pipe x thread)
$9.78
In stock
Tapping Saddle 50 x 1¼ PS050040 Tapping Saddle 50 x 1¼
Size: 50mm x 1¼"� (pipe x thread)
$10.56
In stock
Tapping Saddle 63 x ½ PS063015 Tapping Saddle 63 x ½
Size: 63mm x ½"� (pipe x thread)
$10.17
In stock
Tapping Saddle 63 x ¾ PS063020 Tapping Saddle 63 x ¾
Size: 63mm x ¾"� (pipe x thread)
$10.17
In stock
Tapping Saddle 63 x 1 PS063025 Tapping Saddle 63 x 1
Size: 63mm x 1"� (pipe x thread)
$10.17
In stock
Tapping Saddle 63 x 1¼ PS063032 Tapping Saddle 63 x 1¼
Size: 63mm x 1¼"� (pipe x thread)
$11.57
In stock
Tapping Saddle 63 x 1½ PS063040 Tapping Saddle 63 x 1½
Size: 63mm x 1½"� (pipe x thread)
$11.57
In stock
Tapping Saddle 75 x ½ PS075015 Tapping Saddle 75 x ½
Size: 75mm x ½"� (pipe x thread)
$11.34
In stock
Tapping Saddle 75 x ¾ PS075020 Tapping Saddle 75 x ¾
Size: 75mm x ¾"� (pipe x thread)
$11.34
In stock
Tapping Saddle 75 x 1 PS075025 Tapping Saddle 75 x 1
Size: 75mm x 1"� (pipe x thread)
$11.34
In stock
Tapping Saddle 75 x 1¼ PS075032 Tapping Saddle 75 x 1¼
Size: 75mm x 1¼"� (pipe x thread)
$12.12
In stock
Tapping Saddle 75 x 1½ PS075040 Tapping Saddle 75 x 1½
Size: 75mm x 1½"� (pipe x thread)
$12.12
In stock
Tapping Saddle 75 x 2 PS075050 Tapping Saddle 75 x 2
Size: 75mm x 2"� (pipe x thread)
$12.12
In stock
Tapping Saddle 90 x ½ PS090015 Tapping Saddle 90 x ½
Size: 90mm x ½"� (pipe x thread)
$14.86
In stock
Tapping Saddle 90 x ¾ PS090020 Tapping Saddle 90 x ¾
Size: 90mm x ¾"� (pipe x thread)
$14.86
In stock
Tapping Saddle 90 x 1 PS090025 Tapping Saddle 90 x 1
Size: 90mm x 1"� (pipe x thread)
$14.86
In stock
Tapping Saddle 90 x 1¼ PS090032 Tapping Saddle 90 x 1¼
Size: 90mm x 1¼"� (pipe x thread)
$14.86
In stock
Tapping Saddle 90 x 1½ PS090040 Tapping Saddle 90 x 1½
Size: 90mm x 1½"� (pipe x thread)
$14.86
In stock
Tapping Saddle 90 x 2 PS090050 Tapping Saddle 90 x 2
Size: 90mm x 2"� (pipe x thread)
$14.86
In stock
Tapping Saddle 110 x ½ PS110015 Tapping Saddle 110 x ½
Size: 110mm x ½"� (pipe x thread)
$18.77
In stock
Tapping Saddle 110 x ¾ PS110020 Tapping Saddle 110 x ¾
Size: 110mm x ¾"� (pipe x thread)
$18.77
In stock
Tapping Saddle 110 x 1 PS110025 Tapping Saddle 110 x 1
Size: 110mm x 1"� (pipe x thread)
$18.77
In stock
Tapping Saddle 110 x 1¼ PS110032 Tapping Saddle 110 x 1¼
Size: 110mm x 1¼"� (pipe x thread)
$18.77
In stock
Tapping Saddle 110 x 1½ PS110040 Tapping Saddle 110 x 1½
Size: 110mm x 1½"� (pipe x thread)
$18.77
In stock
Tapping Saddle 110 x 2 PS110050 Tapping Saddle 110 x 2
Size: 110mm x 2"� (pipe x thread)
$18.77
In stock
Add Selected to Cart

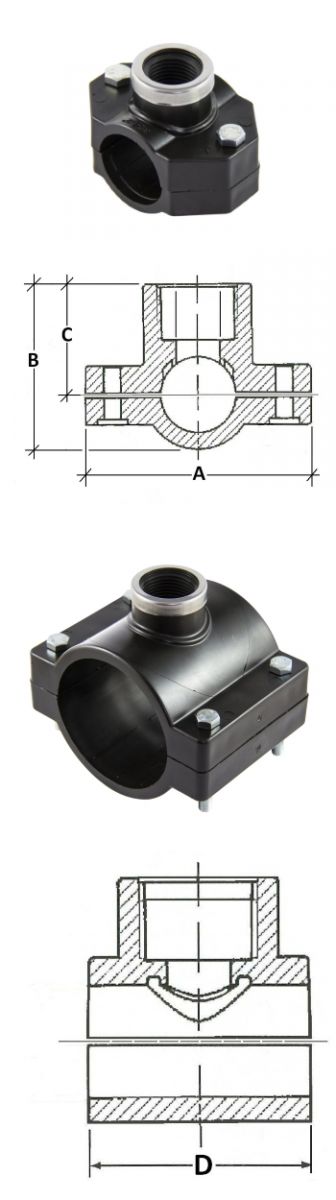

TAPPING SADDLE DIMENSIONS

Code pipe x thread bolts A B C D bar @ 20ºC Weight g
16 Bar
PS020015 20 x ½ 2 62 46 32 37 16 63.9
PS025015 25 x ½ 2 73 45 30 50 16 63.9
PS025020 25 x ¾ 2 73 49 33 50 16 61.4
PS302015 32 x ½ 2 73 55 36 50 16 74.5
PS032020 32 x ¾ 2 73 58 37 50 16 72
PS040015 40 x ½ 2 92 69 45 60 16 107
PS040020 40 x ¾ 2 92 70 46 60 16 104
PS040025 40 x 1 2 92 72 47 60 16 109
PS050015 50 x ½ 4 95 89 44 60 16 164
PS050020 50 x ¾ 4 95 78 48 60 16 164
PS050025 50 x 1 4 95 80 51 67 16 166
PS050040 50 x 1¼ 4 95 89 58 69 16 166
PS063015 63 x ½ 4 111 87 50 60 16 174
PS063020 63 x ¾ 4 111 90 53 60 16 175
PS063025 63 x 1 4 111 94 57 60 16 175
PS063032 63 x 1¼ 4 111 98 61 77 16 205
PS063040 63 x 1½ 4 111 98 61 77 16 214
10 Bar
PS075015 75 x ½ 4 122 98 57 72 10 217
PS075020 75 x ¾ 4 122 101 60 72 10 230
PS075025 75 x 1 4 122 104 63 72 10 239
PS075032 75 x 1¼ 4 122 107 64 84 10 235
PS075040 75 x 1½ 4 122 109 66 84 10 236
PS075050 75 x 2 4 122 115 73 84 10 226
PS090015 90 x ½ 4 143 120 69 105 10 247
PS090020 90 x ¾ 4 143 123 72 105 10 266
PS090025 90 x 1 4 143 124 73 105 10 276
PS090032 90 x 1¼ 4 143 130 78 105 10 269
PS090040 90 x 1½ 4 143 131 80 105 10 289
PS090050 90 x 2 4 143 136 85 105 10 308
PS110015 110 x ½ 4 166 144 83 115 10 509
PS110020 110 x ¾ 4 166 146 84 115 10 503
PS110025 110 x 1 4 166 145 84 115 10 507
PS110032 110 x 1¼ 4 166 151 90 115 10 517
PS110040 110 x 1½ 4 166 152 91 115 10 555
PS110050 110 x 2 4 162 157 95 115 10 531
PS110075 110 x 3 4 157 167 101 127 10 588
6 Bar
PS125020 125 x ¾ 4 170 166 94 101 6 512
PS125025 125 x 1 4 170 166 94 101 6 511
PS125032 125 x 1¼ 4 170 166 94 101 6 518
PS125040 125 x 1½ 4 170 166 94 101 6 518
PS125050 125 x 2 4 170 172 98 101 6 528
PS125075 125 x 3 6 175 176 98 127 6 847
PS140020 140 x ¾ 6 190 189 105 132 6 753
PS140025 140 x 1 6 190 185 100.5 132 6 760
PS140032 140 x 1¼ 6 190 184 100.5 132 6 795
PS140040 140 x 1½ 6 190 182 101 132 6 795
PS140050 140 x 2 6 190 189 108.5 132 6 829
PS160020 160 x ¾ 6 209 188 100 136 6 796
PS160025 160 x 1 6 209 187 102 136 6 792
PS160032 160 x 1¼ 6 209 195 105 136 6 802
PS160040 160 x 1½ 6 209 192 106 136 6 835
PS160050 160 x 2 6 209 195 108 136 6 807
PS160075 160 x 3 6 213 220 125 153 6 1107
PS160100 161 x 4 6 213 220 130 153 6 1122
PS200020 200 x ¾ 6 272 241 135 172 6 1795
PS200025 200 x 1 6 272 241 133 172 6 1781
PS200032 200 x 1¼ 6 272 241 133 172 6 1773
PS200040 200 x 1½ 6 272 241 133 172 6 1767
PS200050 200 x 2 6 272 254 140 172 6 1790
PS200075 200 x 3 6 272 254 140 172 6 1816
PS200100 200 x 4 6 272 264 147 172 6 1803

(TAPPING_SADDLE)

SKU TAPPING_SADDLE
Brand Connecta
