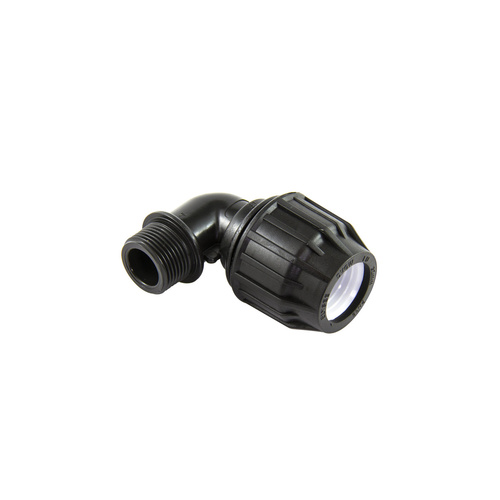

Male Elbow

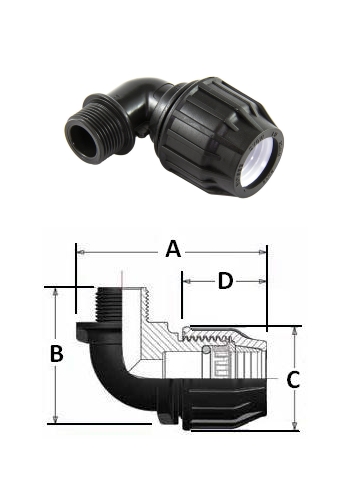

DIMENSIONS
All dimensions are in mm
 |
Code | pipe x thread | A | B | C | D | Weight g |
|---|---|---|---|---|---|---|---|
| EM016015 | 16 x ½ | 74.63 | 55.75 | 39.25 | 35 | 37.4 | |
| EM016020 | 16 x ¾ | 74.73 | 57 | 39.25 | 35 | 37.3 | |
| EM020015 | 20 x ½ | 85.1 | 61.25 | 46 | 39.5 | 52 | |
| EM020020 | 20 x ¾ | 88.6 | 32.75 | 46 | 39.5 | 62.2 | |
| EM025015 | 25 x ½ | 89.63 | 68.75 | 52.5 | 41.25 | 74.8 | |
| EM025020 | 25 x ¾ | 90.88 | 69.25 | 52.5 | 41.25 | 75.6 | |
| EM025025 | 25 X 1 | 92.93 | 78.25 | 52.5 | 41.25 | 79 | |
| EM032020 | 32 x ¾ | 120.75 | 84.5 | 63.75 | 51.75 | 122 | |
| EM032025 | 32 x 1 | 112.25 | 83.75 | 63.75 | 51.75 | 119 | |
| EM040032 | 40 x 1¼ | 136.38 | 92 | 78.25 | 60.75 | 237 | |
| EM040040 | 40 x 1½ | 137.13 | 92.25 | 78.25 | 60.75 | 247 | |
| EM050040 | 50 x 1½ | 152.83 | 110.75 | 92.5 | 68.5 | 345 | |
| EM050050 | 50 x 2 | 153.33 | 115 | 92.5 | 68.5 | 355 | |
| EM063050 | 63 x 2 | 191.25 | 133 | 109 | 82.75 | 525 | |
| EM063065 | 63 x 2½ | 191 | 133.75 | 109 | 82.75 | 559 | |
| EM075065 | 75 x 2½ | 219.2 | 172.25 | 132.5 | 107.5 | 871 | |
| EM075080 | 75 x 3 | 218.2 | 171.25 | 132.5 | 107.5 | 835 | |
| EM090080 | 90 x 3 | 265.08 | 171.5 | 151.5 | 131.25 | 1180 | |
| EM110100 | 110 x 4 | 335.8 | 221 | 175.5 | 166.5 | 1684 |
(MALE_ELBOW)
| SKU | MALE_ELBOW |
